✰ Final Drawings: bathhouse addition to Astoria Pool in Queens, NYC
BFR.4 - plan
BFR.1B - elevations
BFR.1A - choisy oblique
BFR.7 - folded section
✰ Final Renders - made with Twinmotion
BFR.5 - exterior renders
BFR.7 - interior renders
✰ Final Models
site contour & massing model w/ removable pieces
nothing removed walkways removed everything removed
entrance & locker rooms specialty pools bakery
chunk model
single umbrella shell piece
shell with additional folds
colored inside to show contrast
✰ Project B3 - mat building of roof pieces on site
B3.2 - site section
modular pieces
for experimentation
B3.1 - exploded axonometric
✰ Project B2 - site & circulation study
B2.1 - topographic terrace plan
B2.2 - access & circulation diagram
nolli plans: site usage throughout the year
summer
winter
fall/spring
✰ Project A3 - condensed bathhouse onto generic site
A3.1 - exploded axonometric

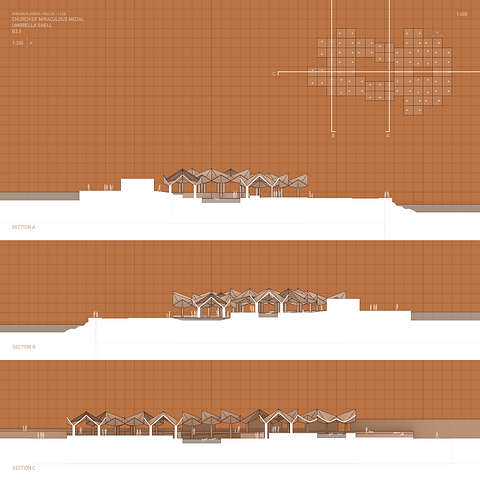

A3.3 - sections
A3.2 - furnished reflected ceiling plan
renders
model & site model
✰ Project A2 - bathhouse shell through mat building
A2.1 - continuous axonometric
A2.2 - choisy oblique
✰ Project A1 - precedent study: Our Lady of the Miraculous Medal church by Felix Candela
A1.1 - choisy oblique

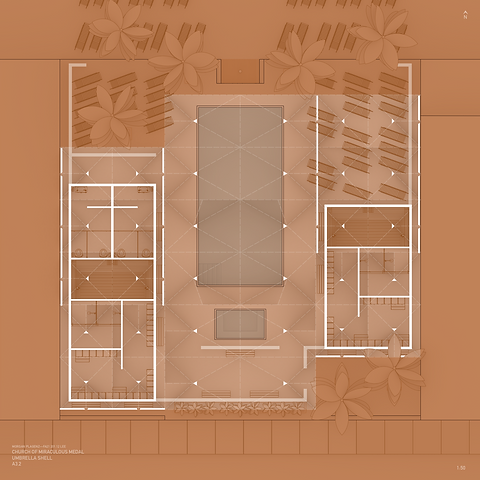

A1.2 - precedent study
A1.3 - experimentation
umbrella shell model
